SSB-1
| SEALX NO | d (f8) | D(H11) | b | B(-0/+0,2) | n |
| SSB-1-019 PU | 19,05 | 25,4 | 6,35 | 7,35 | 3 |
| SSB-1-022 PU | 22 | 30 | 6 | 7 | 4 |
| SSB-1-025 PU | 25 | 35 | 5 | 6 | 4 |
| SSB-1-025/1 PU | 25,4 | 31,75 | 6,35 | 7,35 | 3 |
| SSB-1-028 PU | 28 | 38 | 6 | 7 | 4 |
| SSB-1-028/1 PU | 28 | 35,5 | 5 | 6 | 4 |
| SSB-1-030 PU | 30 | 40 | 8 | 9 | 4 |
| SSB-1-031 PU | 31,75 | 38,1 | 6,05 | 7,1 | 3 |
| SSB-1-032 PU | 32 | 45 | 9,5 | 10,5 | 6 |
| SSB-1-032/1 PU | 32 | 42 | 7 | 8 | 4 |
| SSB-1-034 PU | 34,92 | 41,27 | 6,35 | 7,35 | 3 |
| SSB-1-035 PU | 35 | 45 | 8 | 9 | 4 |
| SSB-1-035/1 PU | 35 | 45 | 7 | 8 | 4 |
| SSB-1-036 PU | 36 | 46 | 8 | 9 | 4 |
| SSB-1-038 PU | 38,1 | 44,45 | 6,35 | 7,35 | 3 |
| SSB-1-040 PU | 40 | 50 | 10 | 11 | 4 |
| SSB-1-040/1 PU | 40 | 52 | 12 | 13 | 6 |
| SSB-1-040/2 PU | 40 | 52 | 10,9 | 11,9 | 6 |
| SSB-1-040/3 PU | 40 | 48 | 9 | 8 | 4 |
| SSB-1-040/4 PU | 40 | 52 | 9 | 10 | 6 |
| SSB-1-044 PU | 44,45 | 53,97 | 9,52 | 10,5 | 4 |
| SSB-1-044/1 PU | 44,45 | 50,8 | 6,35 | 7,35 | 3 |
| SSB-1-045 PU | 45 | 55 | 10 | 11 | 4 |
| SSB-1-050 PU | 50 | 60 | 10 | 11 | 4 |
| SSB-1-050/1 PU | 50 | 62 | 8 | 9 | 6 |
| SSB-1-050/2 PU | 50,8 | 57,15 | 6,35 | 7,35 | 3 |
| SSB-1-052 PU | 52 | 68 | 10 | 11 | 6,5 |
| SSB-1-055 PU | 55 | 65 | 10 | 11 | 4 |
| SSB-1-055/1 PU | 55 | 65 | 12 | 13 | 4 |
| SSB-1-056 PU | 56 | 71 | 10 | 11 | 6,5 |
| SSB-1-060 PU | 60 | 70 | 10 | 11 | 4 |
| SSB-1-063 PU | 63 | 75 | 8 | 9 | 6 |
| SSB-1-063/1 PU | 63 | 78 | 11,8 | 10,8 | 6,5 |
| SSB-1-065 PU | 65 | 80 | 12 | 13 | 6,5 |
| SSB-1-070 PU | 70 | 80 | 10 | 11 | 4 |
| SSB-1-070/1 PU | 70 | 82 | 12 | 13 | 6 |
| SSB-1-075 PU | 75 | 85 | 12 | 13 | 4 |
| SSB-1-080 PU | 80 | 90 | 12 | 13 | 4 |
| SSB-1-080/1 PU | 80 | 92 | 12 | 11 | 6 |
| SSB-1-085 PU | 85 | 100 | 12 | 13 | 6,5 |
| SSB-1-090 PU | 90 | 100 | 12 | 13 | 4 |
| SSB-1-095 PU | 95 | 105 | 12 | 13 | 4 |
| SSB-1-100 PU | 100 | 115 | 12 | 13 | 6,5 |
| SSB-1-100/1 PU | 100 | 120 | 12 | 13 | 7 |
| SSB-1-105 PU | 105 | 115 | 12 | 13 | 4 |
| SSB-1-110 PU | 110 | 125 | 14,6 | 15,6 | 6,5 |
| SSB-1-110/1 PU | 110 | 130 | 15 | 16 | 7 |
| SSB-1-115 PU | 115 | 125 | 12 | 13 | 4 |
| SSB-1-120 PU | 120 | 140 | 14,6 | 15,6 | 7 |
| SSB-1-125 PU | 125 | 145 | 12 | 13 | 4 |
| SSB-1-130 PU | 130 | 140 | 12 | 13 | 4 |
| SSB-1-135 PU | 135 | 145 | 12 | 13 | 4 |
| SSB-1-140 PU | 140 | 160 | 14,6 | 15,6 | 7 |
| SSB-1-160 PU | 160 | 170 | 12 | 13 | 4 |
| SSB-1-190 PU | 190 | 210 | 16 | 15 | 7 |
| SSB-1-195 PU | 195 | 215 | 15 | 16 | 7 |
| SSB-1-210 PU | 210 | 235 | 18,2 | 19,2 | 7 |
| SSB-1-260 PU | 260 | 280 | 14,6 | 15,6 | 7 |
| SSB-1-275 PU | 275 | 295 | 11 | 12 | 7 |
| SSB-1-285 PU | 285 | 310 | 20 | 19 | 7 |
| SSB-1-350 PU | 350 | 380 | 22.5 | 23.5 | 7 |
| SSB-1-380 PU | 380 | 400 | 15 | 16 | 7 |

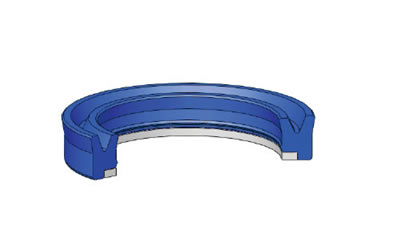

SSB-1 is a two piece single acting rod seal which consists of oneelastomeric sealing element specially designed with additionalsealing lip and one thermoplastic back-up ring.
PRODUCT ADVANTAGES
- Superior sealing effect with the secondary lip
- High wear resistance
- Secondary sealing lip provides extra protection againstthe ingress of dirt particles.
- Improved sealing gap due to the active back-up ring
- Simple groove design
APPLICATION
Construction machinery , fork-lift trucks , injection mouldingmachines , agricultural machinery , mining equipment andstandard cylinders.
| MATERIAL | |
| PU | 92 SHORE A |
| POM | |
| OPERATING CONDITIONS | |||
| MEDIA | Mineral oils(DIN 51524) | HFA and HFB | HFC |
| TEMPERATURE | -35°C +110°C | +5°C +50°C | -30°C +40°C |
| PRESSURE | ≤400 Bar | ≤400 Bar | ≤400 Bar |
| SPEED | ≤0.5 m/sn | ≤0.5 m/sn | ≤0.5 m/sn |
Note: The above data are maximum values and cannot be used at the same time.
| SURFACE ROUGHNESS | Ra | Rmax |
| Sliding Surface Ød | ≤0.4 μm | ≤3 μm |
| Groove Base ØD | ≤1.6 μm | ≤10μm |
| Groove Flanks B | ≤3.2 μm | ≤16 μm |
Note: It is recommended to have 50% to 90% of the working surface material contact area value.
INSTALLATION
Easily assembled into closed grooves according to the minimum diameter values that are given in the below table. Open grooves or special assembly tools should be used for the values that are outside this table. Before installation the sealing element must be oiled with system oil.
| MINUMUM DIAMETER VALUES FOR CLOSED TYPE OF GROOVES | |||||||
| (D-d)/2 (mm) | 4 | 5 | 6 | 7.7 | 10 | 12.5 | 15 |
| dmin (mm) | 25 | 30 | 40 | 50 | 80 | 100 | 105 |
NOTES
The permissible sealing gap values of SSB-1 rod seal is given in the below table.
| PERMISSIBLE SEALING GAP | |||
| Pressure (Bar) | Smax (mm) | ||
| 150 Bar | 1.0 | ||
| 250 Bar | 0.8 | ||
| 400 Bar | 0.6 | ||
Note: The largest sealing gap value occurring on the non-pressurized side of the seal does have a vital importance for the function of the seal and in this respect it is quite important to use the S value lower than the above indicated numbers.
