SAO
| SEALX NO | d(f8) | D(H10) | D1(H11) | S1(+0.2/-0.0) | b | S2 |
| SAO-101 | 101.6 | 114.94 | 106.4 | 6.35 | 11.3 | ≥b |
| SAO-127 | 127 | 140.34 | 131.8 | 6.35 | 11.3 | ≥b |
| SAO-19 | 19.05 | 25.4 | 21.79 | 4.47 | 8 | ≥b |
| SAO-22 | 22.23 | 28.58 | 24.96 | 4.47 | 8 | ≥b |
| SAO-22/1 | 22.23 | 31.75 | 24.95 | 4.77 | 8.5 | ≥b |
| SAO-25 | 25.4 | 31.75 | 28.13 | 4.47 | 8 | ≥b |
| SAO-25/1 | 25.4 | 34.93 | 28.14 | 4.77 | 8.5 | ≥b |
| SAO-31 | 31.75 | 38.1 | 34.49 | 4.47 | 8 | ≥b |
| SAO-31/1 | 31.75 | 41.28 | 34.49 | 4.77 | 8.5 | ≥b |
| SAO-34 | 34.92 | 44.45 | 37.66 | 4.77 | 8.5 | ≥b |
| SAO-38 | 38.1 | 44.45 | 40.84 | 4.47 | 8 | ≥b |
| SAO-38/1 | 38.1 | 47.63 | 40.84 | 4.77 | 8.5 | ≥b |
| SAO-44 | 44.45 | 53.98 | 47.19 | 4.77 | 8.5 | ≥b |
| SAO-47 | 47.63 | 57.15 | 50.36 | 4.77 | 8.5 | ≥b |
| SAO-50 | 50.8 | 57.15 | 53.54 | 4.47 | 8 | ≥b |
| SAO-50/1 | 50.8 | 60.33 | 53.54 | 4.77 | 8.5 | ≥b |
| SAO-63 | 63.5 | 76.84 | 68.33 | 6.35 | 11.3 | ≥b |
| SAO-76 | 76.2 | 89.54 | 81.02 | 6.35 | 11.3 | ≥b |

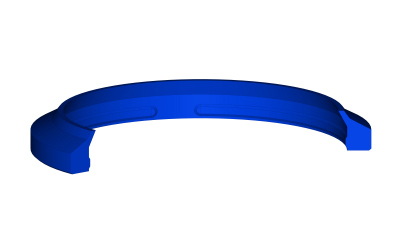

SAO is a single acting wiper ensuring that foreign particles are not introduced into the hydraulic system.
PRODUCT ADVANTAGES
- Very good wiping performance
- No twisting in the house
- Easy installation
- Specially designed to prevent big particles to get into the system
- Used in heavy conditions by the good mechanical properties of Polyurethane material
APPLICATION
Construction machinery , forklift-trucks , presses , injection moulding machines , agricultural machinery and standard cylinders.
| MATERIAL | |
| PU | 92 SHORE A |
| OPERATING CONDITIONS | |||
| MEDIA | Mineral oils (DIN 51524) | HFA and HFB | HFC |
| TEMPERATURE | -30°C +100°C | +5°C +50°C | -30°C +40°C |
| SPEED | ≤ 1.0 m/sn | ≤ 1.0 m/sn | ≤ 1.0 m/sn |
Note: The above data are maximum values and cannot be used at the same time.
| SURFACE ROUGHNESS | Ra | Rmax |
| Sliding Surface Ød | ≤0.4 μm | ≤3.2 μm |
| Groove Base ØD | ≤1.6 μm | ≤10 μm |
| Groove Flanks B | ≤3.2 μm | ≤16 μm |
Note: It is recommended to have 50% to 90% of the working surface material contact area value.
INSTALLATION
Easily installed to closed type groove. We recommend using special assembly tool (See section; Hydraulic Sealing Elements General Installation Information). It is very important that the assembly tools must be of soft material and have no sharp edges.
