SAI-S

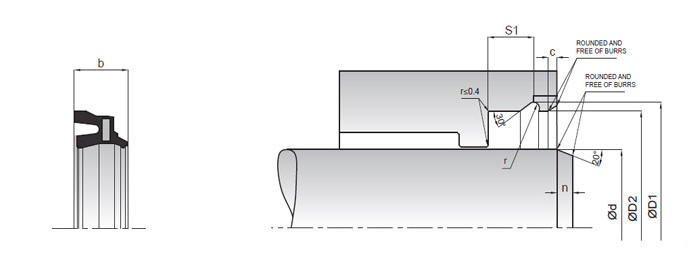

| SEALX NO | d (f9) | D1 (± 0,1) | D2 (H10) | b | S1 (-0/+0, | r | c |
| SAI-S-010 | 10 | 19 | 17 | 8.4 | 7.5 | 1,1 | 1.5 |
| SAI-S-012 | 12 | 24 | 22 | 9,5 | 8,5 | 1,1 | 1,5 |
| SAI-S-012/1 | 12 | 20 | 22 | 8.5 | 7.5 | 1.1 | 1.5 |
| SAI-S-014 | 14 | 26 | 24 | 9,5 | 8,5 | 1,1 | 1,5 |
| SAI-S-016 | 16 | 28 | 26 | 9,5 | 8,5 | 1,1 | 1,5 |
| SAI-S-018 | 18 | 28 | 26 | 8,5 | 7,5 | 1,1 | 1,5 |
| SAI-S-020 | 20 | 32 | 30 | 9,5 | 8,5 | 1,1 | 2 |
| SAI-S-022 | 22 | 34,5 | 32 | 9,5 | 8,5 | 1,4 | 2 |
| SAI-S-025 | 25 | 37,5 | 35 | 9,5 | 8,5 | 1,4 | 2 |
| SAI-S-030 | 30 | 42,5 | 40 | 9,5 | 8,5 | 1,4 | 2 |
| SAI-S-032 | 32 | 44,5 | 42 | 9,5 | 8,5 | 1,4 | 2 |
| SAI-S-035 | 35 | 47,5 | 45 | 9,5 | 8,5 | 1,4 | 2 |
| SAI-S-040 | 40 | 52,5 | 50 | 9,5 | 8,5 | 1,4 | 2 |
| SAI-S-045 | 45 | 57,5 | 55 | 9,5 | 8,5 | 1,4 | 2 |
| SAI-S-050 | 50 | 63,2 | 60 | 9,5 | 8,5 | 1,8 | 2 |
SAI-S is a single acting wiper seal combination which consists of a metal vulcanized with elastomeric nitrile rubber using special production methods.
PRODUCT ADVANTAGES
- Superior wiping effect
- Superior sealing effect
- Wide range of dimensions
- Able to work in hard conditions
- Good adjustment to temperature changes due to the metal ring
APPLICATION
Pneumatic cylinders.
| MATERIAL | |
| NBR | 70 SHORE A |
| STEEL | ST37 |
| OPERATING CONDITIONS | |||
| MEDIA | Prepared , dried and de-oiled compressed air | ||
| TEMPERATURE | -30°C +105°C | ||
| PRESSURE | ≤16 Bar | ||
| SPEED | ≤ 5.0 m/sn | ||
Note: The above data are maximum values and cannot be used at the same time.
| SURFACE ROUGHNESS | Rmax |
| Sliding Surface Ød | ≤4 μm |
| Groove Base ØD | ≤10 μm |
| Groove Flanks B | ≤15 μm |
INSTALLATION
SAI-S wiper/seal is fitted into the housing by means of a circlip recess. The sealing part is pushed in and fixed by the circlip. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the sealing element must be oiled with system oil.
NOTES
For special applications that require high temperatures , SAI-S can be produced in FKM material.
