SPO-1
| SEALX NO | D (H11) | d (h9) | B | d1 | s1 | s |
| SPO-1-020 | 20 | 5,2 | 8 | 12,2 | 1 | 1,4 |
| SPO-1-025 | 25 | 8 | 12 | 14,5 | 3 | 4 |
| SPO-1-025/2 | 25,4 | 6,35 | 12,7 | 9,40 | 2,5 | 3,50 |
| SPO-1-026 | 26 | 8 | 12 | 15,5 | 3 | 4 |
| SPO-1-028 | 28.58 | 6.35 | 12.7 | 12.58 | 2.5 | 3.5 |
| SPO-1-031 | 31.75 | 6.35 | 14.29 | 15.75 | 2.5 | 3.5 |
| SPO-1-032 | 32 | 8 | 15 | 16 | 3 | 4 |
| SPO-1-035 | 35 | 8 | 15 | 19 | 3 | 4 |
| SPO-1-036 | 36 | 8 | 15 | 20 | 3 | 4 |
| SPO-1-040 | 40 | 10 | 18 | 23 | 4 | 5 |
| SPO-1-044 | 44,45 | 6,35 | 14,28 | 23,46 | 2,5 | 3,50 |
| SPO-1-050 | 50 | 10 | 18 | 29 | 4 | 5 |
| SPO-1-050/2 | 50 | 16 | 20.5 | 25 | 4 | 5 |
| SPO-1-050/7 | 50.8 | 9.53 | 15.88 | 15.75 | 3 | 4 |
| SPO-1-057 | 57.15 | 9.53 | 15.88 | 34.65 | 3 | 4 |
| SPO-1-060 | 60 | 12 | 22 | 36,8 | 4 | 5 |
| SPO-1-060/1 | 60.33 | 9.53 | 15.88 | 37.83 | 3 | 4 |
| SPO-1-062 | 62 | 15 | 22 | 39 | 5 | 6 |
| SPO-1-063 | 63 | 12 | 22 | 40,5 | 5 | 6 |
| SPO-1-069 | 69.85 | 9.53 | 19.05 | 47.35 | 4 | 5.5 |
| SPO-1-070 | 70 | 12 | 22 | 47 | 5 | 6 |
| SPO-1-073 | 73.03 | 9.53 | 19.05 | 48.03 | 4 | 5.5 |
| SPO-1-075 | 75 | 15 | 22 | 52 | 5 | 6 |
| SPO-1-075/1 | 75 | 12 | 22.5 | 52 | 5 | 6 |
| SPO-1-076 | 76.2 | 12.7 | 19.05 | 51.2 | 4 | 5 |
| SPO-1-080 | 80 | 16 | 25 | 55 | 5 | 6,5 |
| SPO-1-080/4 | 80 | 16 | 22.5 | 55.2 | 5 | 6.5 |
| SPO-1-080/5 | 80 | 20 | 22,5 | 55,2 | 5 | 6,5 |
| SPO-1-082 | 82.55 | 12.7 | 19.05 | 57.55 | 4 | 5 |
| SPO-1-088 | 88.9 | 12.7 | 22.23 | 63.9 | 5 | 6 |
| SPO-1-090 | 90 | 16 | 25 | 65 | 5 | 6,5 |
| SPO-1-100 | 100 | 16 | 25 | 75 | 5 | 6,5 |
| SPO-1-100/4 | 100 | 12 | 25 | 75 | 5 | 6.5 |
| SPO-1-100/6 | 100 | 20 | 26 | 75 | 5 | 6.5 |
| SPO-1-107 | 107.95 | 12.7 | 22.23 | 82.96 | 5 | 6 |
| SPO-1-110 | 110 | 18 | 25 | 85 | 6 | 7,5 |
| SPO-1-114 | 114.3 | 19.05 | 22.23 | 79.3 | 5 | 6 |
| SPO-1-125 | 125 | 20 | 30 | 90 | 8 | 10 |
| SPO-1-125/1 | 125 | 20 | 26 | 90 | 6 | 7.5 |
| SPO-1-127 | 127 | 19.05 | 25.4 | 92 | 6 | 7.5 |
| SPO-1-130 | 130 | 20 | 29 | 95,00 | 8 | 10,00 |
| SPO-1-140 | 140 | 20 | 30 | 95 | 10 | 12 |
| SPO-1-150 | 150 | 20 | 30 | 105 | 10 | 12 |
| SPO-1-152 | 152.4 | 19.05 | 25.4 | 107.4 | 6 | 7.5 |
| SPO-1-160 | 160 | 27 | 31 | 115 | 10 | 12 |
| SPO-1-165 | 165.1 | 19.05 | 25.4 | 120.1 | 6 | 7.5 |
| SPO-1-180 | 180 | 27 | 31 | 135 | 10 | 12 |
| SPO-1-190 | 190 | 20 | 30 | 160,4 | 10 | 12 |
| SPO-1-200 | 200 | 27 | 35 | 150 | 12 | 15 |
| SPO-1-200/5 | 200 | 30 | 35 | 150,00 | 8 | 10,60 |
| SPO-1-202 | 202.2 | 31.75 | 38.1 | 150.5 | 10 | 11 |
| SPO-1-250 | 250 | 30 | 35 | 200 | 12 | 16,5 |
| SPO-1-253 | 253 | 44.45 | 41.27 | 180 | 12 | 15 |
| SPO-1-320 | 320 | 36 | 40 | 278,5 | 15 | 18,6 |
| SPO-1-400 | 400 | 40 | 50 | 320 | 20 | 23 |

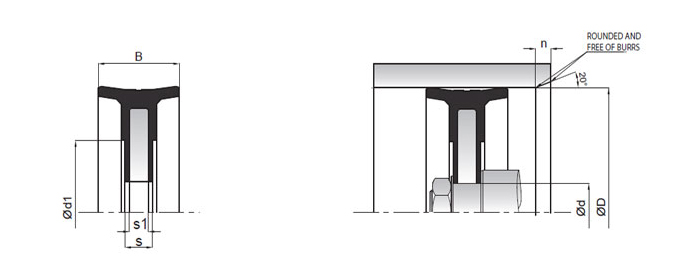

SPO-1 is a double acting complete piston seal which consists of a steel plate vulcanized with elastomeric nitrile rubber using special production methods.
PRODUCT ADVANTAGES
- Ready to fit complete piston
- Wide range of dimensions
- Low friction and smooth running due to sealing lip geometry
- Easily fastened to the piston rod without using additional sealing elements
- Long service life
- Economical sealing solution
APPLICATION
Iron and aluminum pneumatic cylinders.
| MATERIAL | |
| NBR | 75 SHORE A |
| STEEL | ST37 |
| OPERATING CONDITIONS | |
| MEDIA | Prepared , dried and de-oiled compressed air |
| TEMPERATURE | -30°C +105°C |
| PRESSURE | ≤16 Bar |
| SPEED | ≤ 1.0 m/sn |
Note: The above data are maximum values and cannot be used at the same time.
| SURFACE ROUGHNESS | Rmax | |
| Sliding Surface ØD | ≤0.4 μm | ≤3.2 μm |
INSTALLATION
SPO-1 is pushed onto the piston rod on the clamping flange towards the rod and fixed by fastening. The nut has to be secured. The sliding surface and the cylinder bore should be oiled with oil that must not go into the reaction with the sealing element during the installation process. Special precautions has to be taken at the end of the stokes to avoid damaging of the sealing lips.
NOTES
For special applications that require high temperatures , SPO-1 can be produced in FKM material.
