SPE-R
| SEALX NO | d (f7)-dp (h11) | Db (H11)D(H11) | b | B (-0/+0,2) | n |
| SPE-R-003 | 3 | 7 | 5 | 6 | 3 |
| SPE-R-004 | 4 | 10 | 4 | 4,5 | 3 |
| SPE-R-005 | 5 | 12 | 5 | 6 | 3 |
| SPE-R-006 | 6 | 12 | 4 | 4,5 | 3 |
| SPE-R-006/1 | 6 | 15 | 5 | 6 | 4 |
| SPE-R-006/3 | 6 | 16 | 6 | 7 | 4,5 |
| SPE-R-007 | 7 | 15 | 5 | 6 | 4 |
| SPE-R-007/1 | 7,94 | 12,7 | 3,5 | 4 | 2 |
| SPE-R-008 | 8 | 14 | 4 | 4,5 | 3 |
| SPE-R-008/1 | 8 | 14,2 | 3,5 | 4 | 3 |
| SPE-R-008/2 | 8 | 16 | 3,5 | 4 | 4 |
| SPE-R-008/3 | 8 | 16 | 4,2 | 4,7 | 4 |
| SPE-R-008/4 | 8 | 12 | 4 | 4,5 | 2 |
| SPE-R-010 | 10 | 14 | 2 | 2,5 | 2 |
| SPE-R-010/1 | 10 | 16 | 4 | 4,5 | 3 |
| SPE-R-010/3 | 10 | 18 | 5 | 6 | 4 |
| SPE-R-010/4 | 10 | 22 | 6 | 7 | 5 |
| SPE-R-010/5 | 10 | 19 | 3,5 | 4 | 4 |
| SPE-R-010/6 | 10 | 20 | 3,5 | 4 | 4,5 |
| SPE-R-010/7 | 10 | 23 | 4,5 | 5 | 5 |
| SPE-R-012 | 12 | 18 | 4 | 4,5 | 3 |
| SPE-R-012/1 | 12 | 20 | 5,5 | 6,5 | 4 |
| SPE-R-012/3 | 12 | 22 | 5 | 6 | 4,5 |
| SPE-R-012/4 | 12 | 24 | 6 | 7 | 5 |
| SPE-R-012/5 | 12,5 | 23 | 3,5 | 4 | 4,5 |
| SPE-R-012/6 | 12,5 | 20 | 4,5 | 5 | 4 |
| SPE-R-012/7 | 12,5 | 20,3 | 3,5 | 4 | 4 |
| SPE-R-014 | 14 | 20 | 4 | 4,5 | 3 |
| SPE-R-014/1 | 14 | 20 | 4,8 | 5,3 | 3 |
| SPE-R-014/2 | 14 | 25 | 3,5 | 4 | 4,5 |
| SPE-R-015 | 15 | 22 | 4 | 4,5 | 3 |
| SPE-R-015/1 | 15 | 24 | 7 | 8 | 4 |
| SPE-R-015/2 | 15 | 25 | 6 | 7 | 4,5 |
| SPE-R-016 | 16 | 22 | 4 | 4,5 | 3 |
| SPE-R-016/1 | 16 | 22 | 6 | 7 | 3 |
| SPE-R-016/2 | 16 | 25 | 5 | 6 | 4 |
| SPE-R-016/3 | 16 | 26 | 5 | 6 | 4,5 |
| SPE-R-018 | 18 | 26 | 4 | 4,5 | 4 |
| SPE-R-018/1 | 18 | 24 | 4 | 4,5 | 3 |
| SPE-R-018/2 | 18 | 25 | 4 | 4,5 | 3 |
| SPE-R-020 | 20 | 28 | 4 | 4,5 | 4 |
| SPE-R-020/1 | 20 | 28 | 8 | 9 | 4 |
| SPE-R-020/3 | 20 | 30 | 8 | 9 | 4,5 |
| SPE-R-020/5 | 20 | 35 | 10 | 11 | 5,5 |
| SPE-R-020/6 | 20 | 32 | 7,5 | 8,5 | 5 |
| SPE-R-022 | 22 | 30 | 6 | 7 | 4 |
| SPE-R-022/1 | 22 | 35 | 7 | 8 | 5 |
| SPE-R-022/2 | 22 | 32 | 5 | 6 | 4,5 |
| SPE-R-022/3 | 22 | 28 | 5 | 6 | 3 |
| SPE-R-024 | 24 | 30 | 5 | 6 | 3 |
| SPE-R-024/1 | 24 | 32 | 4 | 4,5 | 4 |
| SPE-R-024/2 | 24 | 34 | 5 | 6 | 4,5 |
| SPE-R-025 | 25 | 33 | 7 | 8 | 4 |
| SPE-R-025/1 | 25 | 40 | 6 | 7 | 5,5 |
| SPE-R-027 | 27 | 36 | 6 | 7 | 4 |
| SPE-R-028 | 28 | 38 | 5 | 6 | 4,5 |
| SPE-R-028/2 | 28 | 52 | 10 | 11 | 7 |
| SPE-R-029 | 29 | 35 | 6 | 7 | 3 |
| SPE-R-030 | 30 | 40 | 9 | 10 | 4,5 |
| SPE-R-030/1 | 30 | 45 | 10 | 11 | 5,5 |
| SPE-R-030/2 | 30 | 55 | 12 | 13 | 7 |
| SPE-R-032 | 32 | 42 | 8 | 9 | 4,5 |
| SPE-R-032/1 | 32 | 40 | 7 | 8 | 4 |
| SPE-R-032/2 | 32 | 48 | 8 | 9 | 5,5 |
| SPE-R-032/3 | 32 | 40 | 4 | 4,5 | 4,5 |
| SPE-R-033 | 33 | 42 | 7 | 8 | 4 |
| SPE-R-035 | 35 | 45 | 5 | 6 | 4,5 |
| SPE-R-035/1 | 35 | 45 | 6 | 7 | 4,5 |
| SPE-R-035/2 | 35 | 42 | 5,3 | 6,3 | 4,5 |
| SPE-R-040 | 40 | 50 | 5 | 6 | 4,5 |
| SPE-R-040/1 | 40 | 60 | 10 | 11 | 7 |
| SPE-R-040/2 | 40 | 48 | 8 | 9 | 4 |
| SPE-R-046 | 46 | 70 | 12 | 13 | 7 |
| SPE-R-048 | 48 | 60 | 6 | 7 | 5 |
| SPE-R-048/1 | 48 | 60 | 7 | 8 | 5 |
| SPE-R-050 | 50 | 80 | 15 | 16 | 8 |
| SPE-R-050/1 | 50 | 75 | 12 | 13 | 7 |
| SPE-R-055 | 55 | 70 | 10 | 11 | 5,5 |
| SPE-R-058 | 58 | 70 | 6 | 7 | 5 |
| SPE-R-060 | 60 | 100 | 20 | 21 | 10 |
| SPE-R-061 | 61 | 73 | 6 | 7 | 5 |
| SPE-R-062 | 62 | 86 | 12 | 13 | 7 |
| SPE-R-064 | 64 | 80 | 8 | 9 | 5,5 |
| SPE-R-072 | 72 | 84 | 8 | 9 | 5 |
| SPE-R-072/1 | 72 | 84 | 6 | 7 | 5 |
| SPE-R-072/2 | 72 | 82 | 5 | 6 | 4,5 |
| SPE-R-075 | 75 | 100 | 12 | 13 | 7 |
| SPE-R-075/1 | 75 | 90 | 7,5 | 8,5 | 5,5 |
| SPE-R-080 | 80 | 100 | 10 | 11 | 7 |
| SPE-R-082 | 82,55 | 95,25 | 9,52 | 10,52 | 5,5 |
| SPE-R-130 | 130 | 150 | 10 | 11 | 7 |
| SPE-R-135 | 135 | 150 | 10 | 11 | 5,5 |
| SPE-R-220 | 220 | 250 | 15 | 16 | 7,5 |
| SPE-R-230 | 230 | 270 | 20 | 21 | 10 |
| SPE-R-290 | 290 | 330 | 20 | 21 | 10 |

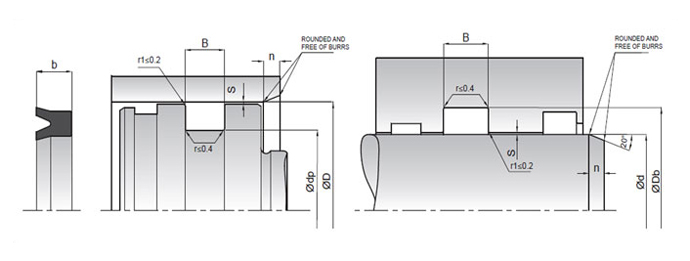

SPE-R is a single acting piston - rod seal and designed to have symmetrical lips in order to be used both for rod and piston applications.
PRODUCT ADVANTAGES
- Superior static and dynamic sealing effect
- Wide range of dimensions
- Easy assembly into closed grooves
- Although designed for hydraulic cylinders , it is used in special pneumatic cylinders as well
- Simple groove design
- Economical sealing solution
APPLICATION
Fork-lift trucks , injection moulding machines , agricultural machinery , and standard cylinders.
| MATERIAL | |
| NBR | 90 SHORE A |
| PU | 92 SHORE A |
| OPERATING CONDITIONS | |||
| NBR | |||
| MEDIA | Mineral oils(DIN 51524) | HFA and HFB | HFC |
| TEMPERATURE | -30°C +105°C | +5°C +60°C | -30°C +60°C |
| PRESSURE | ≤150 Bar | ≤150 Bar | ≤150 Bar |
| SPEED | ≤0.5 m/sn | ≤0.5 m/sn | ≤0.5 m/sn |
Note: The above data are maximum values and cannot be used at the same time.
| SURFACE ROUGHNESS | Ra | Rmax |
| Sliding Surface ØD-Ød | ≤0.4 μm | ≤3.2 μm |
| Groove Base ØDb-Ødp | ≤1.6 μm | ≤10 μm |
| Groove Flanks B | ≤3.2 μm | ≤16 μm |
Note: It is recommended to have 50% to 90% of the working surface material contact area value.
INSTALLATION
Easily assembled into closed grooves according to the minimum diameter values that are given in the below table. Open grooves or special assembly tools should be used for the values that are outside this table. Before installation the sealing element must be oiled with system oil.
| MINUMUM DIAMETER VALUES FOR CLOSED TYPE OF GROOVES | |||||||
| (D-d)/2 (mm) | 4 | 5 | 6 | 7.7 | 10 | 12.5 | 15 |
| dmin (mm) | 25 | 30 | 40 | 50 | 80 | 100 | 105 |
NOTES For special applications that require high temperatures , SPE-R can be produced in FKM material. The permissible sealing gap values of SPE-R piston - rod seal is given in the below table.
| PERMISSIBLE SEALING GAP | |||
| Smax (mm) | |||
| t=(D-d)/2 | 50 Bar | 100 Bar | 150 Bar |
| t≤5 | 0.40 | 0.20 | 0.10 |
| t>5 | 0.45 | 0.25 | 0.15 |
Note: The largest sealing gap value occurring on the non-pressurized side of the seal does have a vital importance for the function of the seal and in this respect it is quite important to use the S value lower than the above indicated numbers.
