SAE-1
| SEALX NO | d (f8) | D (H8) | s/s1 | b | c |
| SAE-1-020 | 20 | 30 | 7 | 10 | 1,4 |
| SAE-1-022/1 | 22 | 30 | 5 | 8 | 1 |
| SAE-1-022/2 | 22 | 32 | 7 | 10 | 1,4 |
| SAE-1-025 | 25 | 35 | 7 | 10 | 1,4 |
| SAE-1-030 | 30 | 40 | 5 | 7 | 0,8 |
| SAE-1-030/1 | 30 | 40 | 7 | 10 | 1,4 |
| SAE-1-032 | 32 | 40 | 7 | 10 | 1,4 |
| SAE-1-032/1 | 32 | 45 | 7 | 10 | 1,4 |
| SAE-1-035 | 35 | 45 | 7 | 10 | 1,4 |
| SAE-1-036 | 36 | 46 | 7 | 10 | 1,4 |
| SAE-1-036/1 | 36 | 45 | 7 | 10 | 1,4 |
| SAE-1-040 | 40 | 50 | 7 | 10 | 1,4 |
| SAE-1-040/1 | 40 | 50 | 5 | 8 | 1 |
| SAE-1-045 | 45 | 55 | 7 | 10 | 1,4 |
| SAE-1-050 | 50 | 60 | 7 | 10 | 1,4 |
| SAE-1-050/1 | 50 | 56 | 5 | 7 | 0,8 |
| SAE-1-055 | 55 | 65 | 7 | 10 | 1,4 |
| SAE-1-056 | 56 | 66 | 7 | 10 | 1,4 |
| SAE-1-060 | 60 | 70 | 7 | 10 | 1,4 |
| SAE-1-063 | 63 | 75 | 7 | 10 | 1,4 |
| SAE-1-065 | 65 | 75 | 7 | 10 | 1,4 |
| SAE-1-070 | 70 | 80 | 7 | 10 | 1,4 |
| SAE-1-070/1 | 70 | 80 | 5 | 7 | 0,8 |
| SAE-1-075 | 75 | 85 | 7 | 10 | 1,4 |
| SAE-1-080 | 80 | 90 | 7 | 10 | 1,4 |
| SAE-1-090 | 90 | 100 | 7 | 10 | 1,4 |
| SAE-1-100 | 100 | 110 | 7 | 10 | 1,4 |
| SAE-1-105 | 105 | 115 | 7 | 10 | 1,4 |
| SAE-1-130 | 130 | 145 | 9 | 12 | 1,8 |
| SAE-1-180 | 180 | 195 | 10 | 14 | 1,8 |

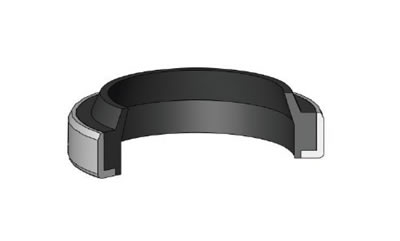

SAE-1 is a single acting wiper ensuring that foreign particles are not introduced into the hydraulic systems , avoiding wear and damage to all the internal components including seals
PRODUCT ADVANTAGES
- Superior wiping performance
- Axially open , easy-construction groove
- Used in heavy conditions by the good mechanical properties of PU material.
- Secure seating , press fitting into the housing
- Space-saving construction
APPLICATION
Light and medium duty construction machinery , fork-lift trucks , agricultural machinery , support cylinders and standard cylinders.
| MATERIAL | |
| NBR | 90 SHORE A |
| STEEL | ST37 |
| OPERATING CONDITIONS | |||
| MEDIA | Mineral oils (DIN 51524) | HFA and HFB | HFC |
| TEMPERATURE | -30°C +105°C | +5°C +60°C | -30°C +60°C |
| SPEED | ≤ 1.0 m/sn | ≤ 1.0 m/sn | ≤ 1.0 m/sn |
Note: The above data are maximum values and cannot be used at the same time.
| SURFACE ROUGHNESS | Ra | Rmax |
| Sliding Surface Ød | ≤0.4 μm | ≤3.2 μm |
| Groove Base ØD | ≤1.6 μm | ≤10 μm |
| Groove Flanks B | ≤3.2 μm | ≤16 μm |
INSTALLATION
Wiper is pressed into axially open housings. Special equipment should be used during this process. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the wiper must be oiled with system oil.
NOTES SAE-1 wipers are single acting and can be used with combination of all rod sealing elements. SAE-1 wipers can be produced on requests in FKM material for special applications that require high temperatures.
